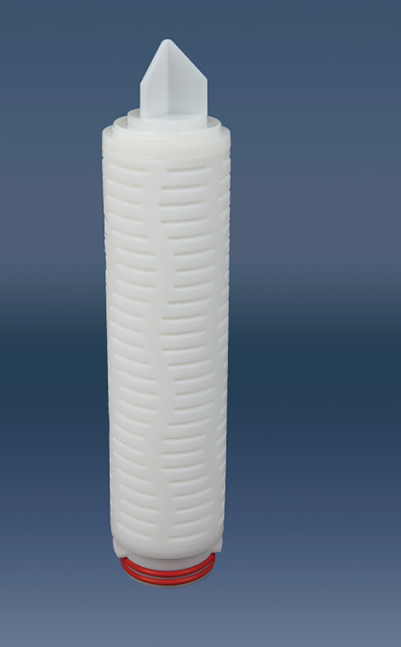

PGF series
2022-12-17 Click：
Ultra-fine glass fiber composite membrane is adopted in the product as filter media. The product is produced by overall structure sweat welding, which is suitable for pre-filtration of air and pre-filtration of high viscosity material liquid.
Features:
Features:
● High flux and low resistance;
● Relative filtration accuracy and interception rate can be up to 90%;
● Wide chemical compatibility, acid and alkaline resistance;
Typical applications:
Typical applications:
● Pre-filtration of air;
● Filtration of oil products;
● Pre-filtration of biological products;
● Filtration of high concentration and high viscosity material liquid;
Main application technical indicators:
Main application technical indicators:
Maximum operating temperature | 85℃/0.1MPa |
Maximum operating pressure difference | 0.42MPa/25℃ |
Maximum back-pressure difference | 0.21MPa/25℃ |
Effective filtration area(10 inches) | ≥0.6㎡ |
